RealDigital RFSoC 4x2 Tutorials

This web page is meant to be an introduction to how to use the RealDigital 4x2 RFSoC development board. This work was done thanks to a collaboration between me, Drew Baden, and Alessandro Restelli from JQI, and in fact Alessandro taught me most of what I know about this subject.

This board is a "lite" version of the more powerful boards (e.g. AMD ZCU208). The focus is on the firmware in the Xilinx part, not on the PYNQ software, but of course you can't use one without the other so there will be some useful information on PYNQ here. A good place to start for a PYNQ tutorial might be here.

An excellent online book that delves nicely into software radio can be found here, where you can download the latest version. Or you can grab this one that dates from 2023.

I'm using Vivado 2024.2 here, although most of the base project that AMD supplies is made with Vivado 2022.1. But I found 2024.2 works fine, and it's more modern.

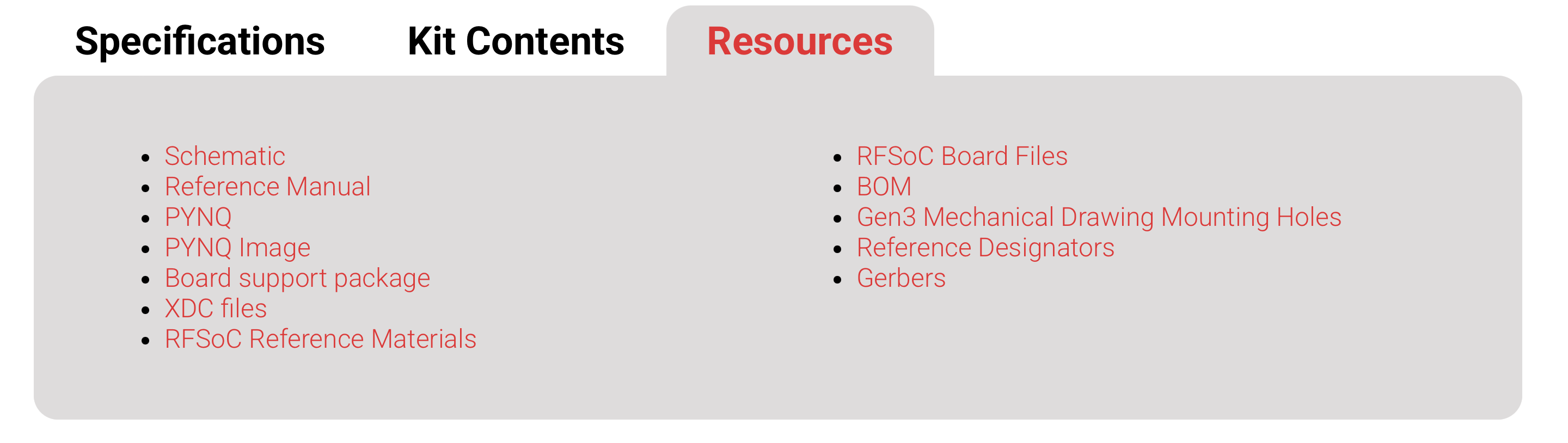

You can find the reference manual (revision A5) for the 4x2 board here. A schematic can be found here.

The 4x2 has 2 DACs that run at 9.85 GSps (actually, the max is more like 7 GSps, more on that below) and 4 ADCs that can run at 5 GSps. The more powerful boards have 8 DACs and 8 ADCs, different (although not necessarily better) internal clocking, etc. The data converters allow you to modulate a carrier wave with a lot of flexibility.

Both the RealDigital 4x2 and the ZCU208 board use the same Xilinx ZU48DR chip. In the gen3 ZU48DR, the ADCs can convert at up to 5 GSps and the DACs up to 9.85 GSps. However, that chip comes in different speed grades: -1 and -2 designations, with -2 being "faster" than -1. What the manufacturer does is to make large numbers of chips, then test and sort according to how fast they can push each chip. Faster ones go in the -2 bin, slower ones in the -1 bin. And as you can imagine, they charge more for the faster chips.

The ZCU208 uses the faster -2, but for the 4x2 it might have different speed grades depending on what you bought it, etc. Probably most newer ones have the -2 speed, but it turns out that it's probably impossible to know from issuing linux commands or reading the bit or hwh files since those reflect what was put in. But the board files determine what target you are compiling for, and I believe those comes from RealDigital, so maybe you can trust it. So what you can do is to find an hwh file that goes with a bit file you've made, then in linux on the ARM chip, cd to that file location and do this:

  grep  "SPEEDGRADE"

<SYSTEMINFO ARCH="zynquplusRFSOC" BOARD="realdigital.org:rfsoc4x2:part0:1.0" DEVICE="xczu48dr" NAME="GPIO" PACKAGE="ffvg1517" SPEEDGRADE="-2"/>

The main difference between the speed grades is that -2 can support higher clock speeds for the various resources, as in the following table:

Note that UltraRam is like block ram (BRAM) in an FPGA, but it is designed to be used for massive buffers, so it has less flexibility than BRAM but can be cascaded and uses up less FPGA resources than BRAM. It has less flexibility in the data worth (BRAM can be highly configurable) and not as much capability for dual port operations, and importantly cannot be preloaded like BRAM can. Also, a GTY transceiver is a specialized ultra fast hardware circuit on the FPGA designed for very high speed communications. It can be used as a serializer/deserializer (SERDES) running different protocols (100G ethernet, PCI express), can support error correction like Reed-Solomon, support 8b/10b, 64b/66b, and even 128b/130b, and has built-in equalization.

For our purposes, the only place where the speed grade might matter is if we have to do massive amounts of DMA into and out of the RF Converter, and need to push the FPGA fabric clock up to accomplish this. But this is highly unlikely, as the 4x2 board with the -1 chip is probably adequate for most things we will be doing.

The main difference between the 4x2 and the ZCU208 boards is that on the 4x2, only 4 ADCs and 2 DACs are wired up to SMA connectors, whereas on the ZCU208 all 8 ADCs and DACs are wired up ready to use.

This is a rather versatile chip, with extensive documentation:

• Product Guide (aka Zynq UltraScale+ RFSoC RF Data Converter v2.6 Gen 1/2/3/DFE LogiCORE IP Product Guide (PG269)
• DC and AC Switching Characteristics

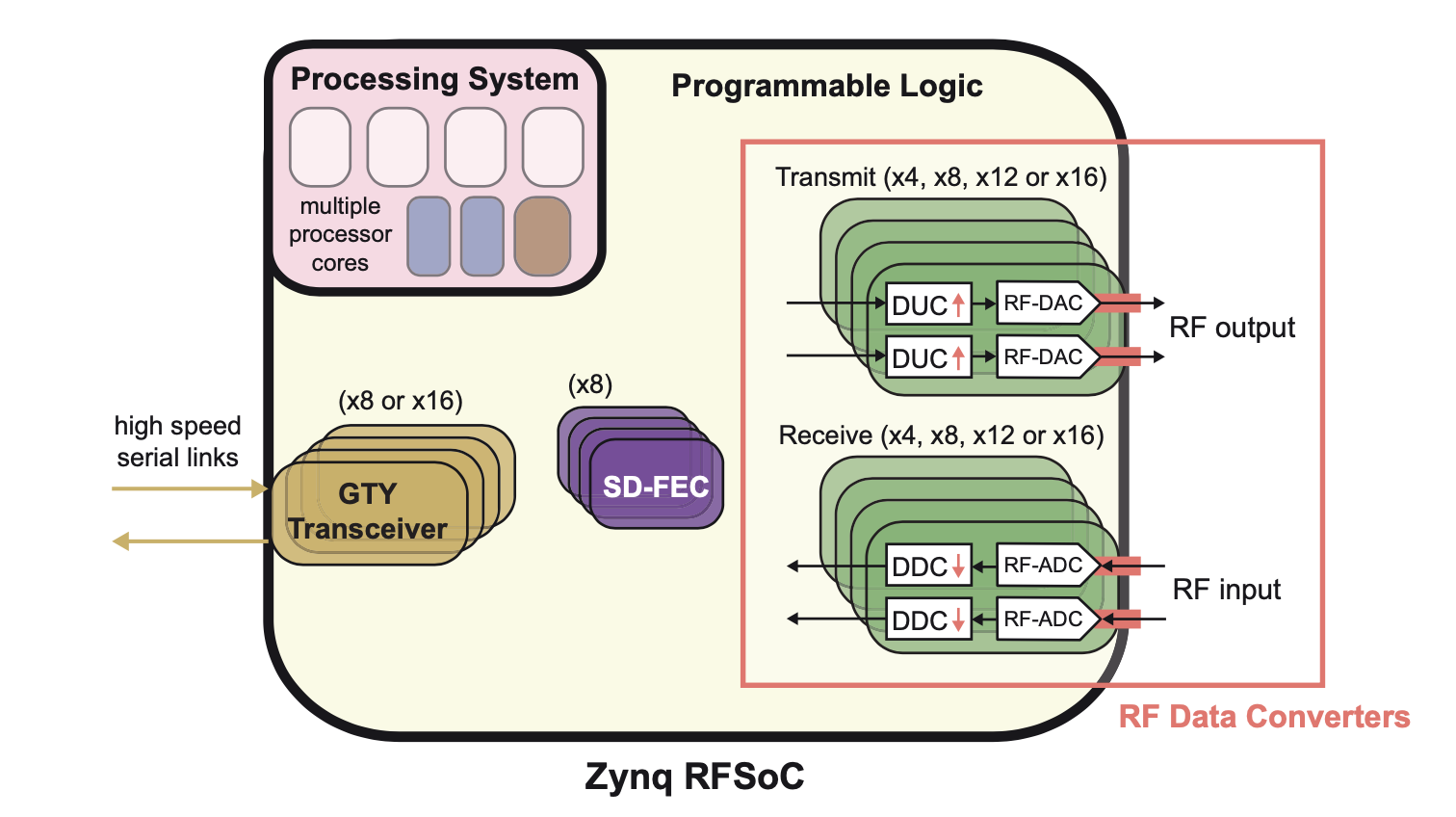

The architecture is outlined in this figure:

As you can see from the diagram, there are the following subsystems (which is why this is called a System on Chip, or SOC):

• "Processing System" (PS in Xilinx world), which consists of 2 ARM processors: a 64 bit quad-core ARM Cortex-A53 that can run python fast, and a 32 bit dual-core ARM Cortex-R5F tuned for DAQ. The PS also has an ARM Mali-400. There is 256kB of RAM, 60Mb of 72-bit UltraRAM and block RAM. The 64 bit processor can support 2.4 GHz DDR4, and 8-channel DMA controller, PCIe, SATA, DisplayPort, Gigabit ethernet, USB-3, and other ports.

  The A53 processor runs PYNQ 3.1.1 ("PynqLinux"), which has a bunch of modifications for the Zynq chip. PynqLinux is a version of linux built from Ubuntu 22.04, codenamed "Jammy", and Ubuntu is broadly derived from Debian.

• "Programmable Logic" (PL in Xilinx world), this is the FPGA, it is 930k logic cells, and 4.2k DSP slices
• "GTY Transceiver" for fast serial links (ethernet, etc)
• "RF Data Converters" are the ADCs and DACs and all the support electronics (up converters for the DAC, down converters for the ADC, filters, clocking, etc). The ADCs can run at sampling rates up to 5 GSps, the DACs at 9.85 GSps (actually 7 GSps, more on that below), and has FEC IP blocks (which are not needed for ADMX). The hardware can support up to 40x decimation/interpolation.

cat /etc/os-release
NAME="PynqLinux"
VERSION="3.0 (Carlisle)"
ID=pynqlinux
ID_LIKE=ubuntu
PRETTY_NAME="PynqLinux, based on Ubuntu 22.04"
VERSION_ID="3.0"
HOME_URL="https://www.pynq.io/"
SUPPORT_URL="https://discuss.pynq.io/"
BUG_REPORT_URL="https://www.pynq.io"
PRIVACY_POLICY_URL="https://www.pynq.io"
VERSION_CODENAME=Carlisle
UBUNTU_CODENAME=jammy

import pynq
print(pynq.__version__)

Not shown are the SMA inputs and outputs for the analog signals and external clocks. Also not shown are 4 GBytes of 64 bit 2.4 GHz DDR4 connected to the PS, and a similar number connected to the PL. These are the 8 rectangular chips on the board, 4 above (PL) and 4 below (PS) the FPGA (covered by a fan in the top image here). The inputs and outputs and SMA clock and sync in ports are the SMA connectors on the left in the top image, and those signals come in single ended on SMA connectors, and are converted to differential on the inputs.

The inputs to the Digital Up Converter (DUC) on the Zynq RFSoC image above are the modulation waveforms that you can send into the device from the ARM chip using DMA on the AXI bus (which is a pretty simple bus). The DACs have digital up-convertors (DUC) for taking input at some frequency and producing an output that can change at 9.85GSps max. The ADCs have digital down-convertors (DDC) that can produce data at any sampling rate.

The RealDigital portal to the RFSoC 4x2 is here. Scroll down to the bottom of that page and click on the "Resources" tab, which shows you this:

Back to top

Backup from Zynq

Back to top

Processors

Back to top

Clocking

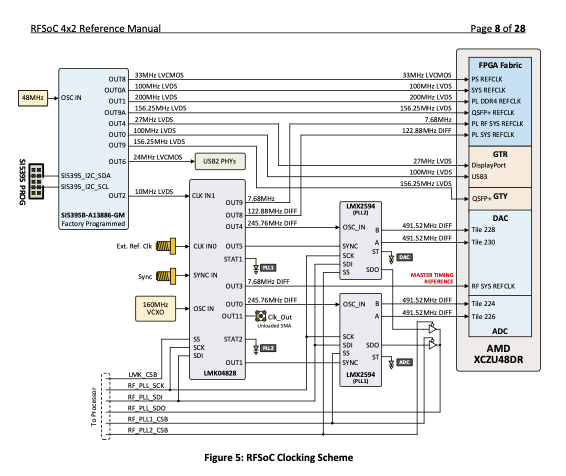

Clocking on the 4x2 is summarized in the following diagram, which you can find on page 8 of the RFSoC 4x2 Reference Manual.

There are a great many clocks floating around on this board, but pretty much all of these clocks start in the Skyworks Si5395 chip (SI5395B-A13886-GM). This is a clock multiplier and jitter attenuator, driven by a 48MHz crystal. It can generate a range of frequencies, with parameters programmed by the user stored in internal ROM. It looks like this chip is already programmed ("factory programmed"). It has 12 clock outputs, any-frequency synthesis architecture, jitter roughly 70-100 femtoseconds, an integrated jitter attenuation, is I²C or SPI programmable.

The Si5395 has 2 main jobs:

• to provide baseline clocks for the system of gadgets on the 4x2 board that do not need precision clocks (like the actual FPGA, USB chips, processors, etc)
• provides a precision 10MHz clock that gets fed into other chips, ultimately driving the RF converters.

• 33 MHz LVCMOS reference clock for the ARM processors (AKA the PS).
• 100 MHz LVDS system clock for the FPGA, used to run the FPGA fabric (state machines, counters, AXI bus logic, DMA, etc)
• 200 MHz LVDS DDR4 reference clock for the FPGA to use to read and write to it's own 4GB of external DDR4 memory. This signal is used by the FPGA to control the DDR4 memory.
• 156.25 MHz LVDS for the QSFP ("quad small form-factor pluggable") ethernet transceiver reference clock
• 27 MHz LVDS DisplayPort serial link clock
• 24 MHz LVCMOS USB2 port (the PROG UART USB micro port)
• 100 MHz LVDS system reference clock for the USB3 chip
• 10 MHz LVDS output clock that feeds into the LMK chips for the RF clock chain

The 10MHz LVDS clock output from the Si5395 is the most critical clock for the RF circuitry. This clock that is fed into the TI LMK04828 (LMK) chip, which also has an input from a 160MHz crystal oscillator made by Abracon. The crystal oscillator has very low phase noise, so the LMK chip phase locks it to the 10MHz reference clock to provide a reference clock for the RF converters.

The LMK chip has 2 output clocks that go into the FPGA fabric:

• 7.68 MHz is a clock synchronization signal, so can be used to align all of the DACs, or to start all of the ADCs together, but it is not used to clock user logic.
• 122.88 MHz to provide a clock domain that is phase-related to the RF converter clocking system. This clock should be used in building things like a virtual network analyzer (VNA) etc since it has phase-related to the RF converter clocks

The LMK chip also has 2 sets of outputs where each pair feeds a TI LMX2594 clock synthesizer (LMX) chips. These chips provide reference clocks for the RF converter circuitry that has the ADC and DAC components. Of the pair of outputs, one is a 245.76MHz frequency reference used continuously by the LMX chip, and the other is a phase alignment signal, usually a pulse that is asserted after powerup and phase locking by the LMX chip.

To make the reference clock for the RF Converter circuitry, each LMX chip has an internal voltage controlled oscillator (VCO) built from an LC circuit where the capacitance derives from a diode (called a varactor) whose capacitance changes with voltage. So suppose you want an output that is 4.9152GHz (20 times the incoming 245.76MHz) reference clock for the RF converter (for the ADC or DAC). (Note: the RF converter uses this reference clock to make the sampling clock that it needs!) The software figures out all of the dividers that are needed, and programs the LMX chip. The LMX actually has several VCO's for different ranges, so what it does is to first do a calibration that picks the closest one, use the divider the software loaded in, divide down the VCO, and then phase lock it to the incoming signal from the LMK to produce the right output signal.

The other magic happens in the RFConverter. So say you want to run an ADC at a frequency of something like 3.558GHz. You would load this frequency into the RF Converter block inside Vivado and tell it that the reference clock will be 491.52MHz. The software will figure out how to multiply and divide that clock to get you 3.558GHz, and load those numbers into the file to download to the RFSoC. If the rate you want isn't possible for some reason, the software will tell you! For instance, to start with 491.52MHz and get 3.558GHz, that ratio is 3558/491.52=7.23877. That's not an integer, but the RFSoC can still generate something close to that frequency by starting at 7 and adding 61/256 to get the 7.23828125, giving 3557.76MHz which is very close using the multiplier of 491.52MHz.

Clock precision

If you look at the Si5395 data sheet, you will see that the 48MHz oscillator has a frequency that varies by ±15ppm. This uncertainty is a due to cutting and manufacturing uncertainties, and is constant over the lifetime of the crystal. This means that the actual frequency can be as much as 48,000,720Hz (+15ppm) but will always have that value every time you power up the board.

In addition to the initial ±15ppm, there are variations in the frequency due to temperature, but these crystals are usually somewhat flat in temperature variability around 25°C. For this crystal, the temperature range of -40 to +85°C increases the frequency uncertainty to ±25ppm. There is also a small variation of a few ppm due to aging, and even smaller ones (load capacitance, humidity, etc). But for a board sitting in a lab at constant temperature, one would expect a frequency due to just the initial manufacturing of ±15ppm. That means that if you want to use this system to generate a 1GHz tone, you can expect it to be within around 15kHz in a controlled temperature environment.

To get the 4x2 to generate a tone with a more precise frequency, you have to use an external 10MHz precision clock connected into the "CLK_IN" SMA input on the board. Then you can use a python Jupyter notebook to use that clock as the reference. To do that, check out the following code. This sets up a class to overlay to load any file you want (here it's called 'cyclic_clock.bit'), invokes the class via gen=Gen(), and tells the system to use the external clock via gen.set_external_rf_clks(). It also sets the processor clock to 250MHz (I think the default is 100 MHz).

Back to top

Python code

Here is an example of how to set up the clocks in the Python PYNQ environment:

from pynq import Overlay, MMIO, allocate
from xrfdc import RFdc
from pynq.overlays.base import BaseOverlay
import time
import xrfclk
import numpy as np
from pynq import Clocks

class Gen(BaseOverlay):
    def __init__(self,NCO=False,ext_clock=True):
        Overlay.__init__(self,'cyclic_clock.bit')

        if self.is_loaded():
            self.i2c_initialized = False
            self.display_port_initialized = False
            self.radio = self.usp_rf_data_converter_0

            self.xrfdc_alias = MMIO(self.ip_dict['usp_rf_data_converter_0']['phys_addr'],
                             self.ip_dict['usp_rf_data_converter_0']['addr_range']).array

            self.init_rf_clks()
            self.freq_a = 0.01
            self.radio.dac_tiles[2].blocks[0].MixerSettings['EventSource'] = 0

            self.freq_b = 0.01
            self.radio.dac_tiles[0].blocks[0].MixerSettings['EventSource'] = 0

    def set_external_rf_clks(self):
            for lmk in xrfclk.lmk_devices:
                with open(lmk['spi_device'], 'rb+', buffering=0) as f:
                    data = b'\x01\x47\x0A' # Only works for LMK0482x series
                    f.write(data)

    def set_internal_rf_clks(self):
        for lmk in xrfclk.lmk_devices:
            with open(lmk['spi_device'], 'rb+', buffering=0) as f:
                data = b'\x01\x47\x1A' # Only works for LMK0482x series
                f.write(data)

    @property
    def freq_a(self): # MHz
        return self.radio.dac_tiles[2].blocks[0].MixerSettings['Freq']


    @freq_a.setter
    def freq_a(self,freq): # MHz
        self.radio.dac_tiles[2].blocks[0].MixerSettings['Freq'] = freq
        self.radio.dac_tiles[2].blocks[0].UpdateEvent(1)

    @property
    def freq_b(self): # MHz
        return self.radio.dac_tiles[0].blocks[0].MixerSettings['Freq']


    @freq_b.setter
    def freq_b(self,freq): # MHz
        self.radio.dac_tiles[0].blocks[0].MixerSettings['Freq'] = freq
        self.radio.dac_tiles[0].blocks[0].UpdateEvent(1)

print("Clock before overclocking: "+str(Clocks.fclk0_mhz)+" MHz")
gen = Gen()
gen.set_external_rf_clks()
Clocks.fclk0_mhz = 250
print("Clock after overclocking: "+str(Clocks.fclk0_mhz)+" MHz")
print("all done")

Back to top

Install Linux and boot up

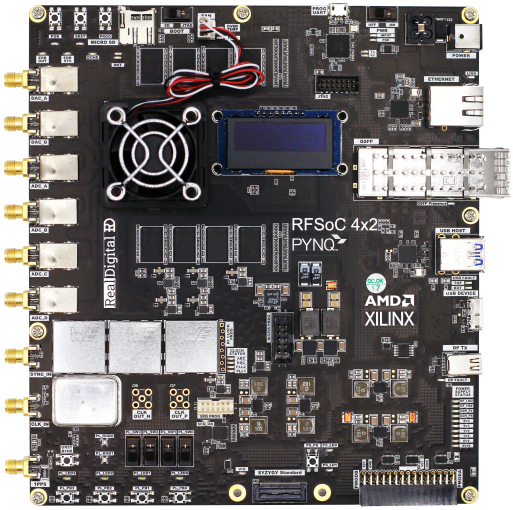

In the top image you will see a micro SD card input at the top left of the 1st 3 push buttons. This micro SD card holds the image of the Linux OS that runs in the A53 ARM chip, implementing the PYNQ environment. All of the images for all of the boards can be found here

The RealDigital 4x2 board ships with an SD card that is supposed to contain a working image. When we bought one in summer 2024, we plugged in the micro SD card that comes with the kit, but it didn't work at all. So we downloaded and installed the image from the web site, version v3.0.1 (codenamed "Belfast"). This image was built with Vivado 2022.1 in mind, which means that all of the base projects that go with the tutorials use the Vivado 2022.1 toolchain. You can download it from the PYNQ site. It's a 2.26GB zip file, so unzip, and it will create a file called "rfsoc4x2_v3.0.1.img" that will be around 10GB. To install onto a micro SD card, best to use a Windows 11 machine. Download the app called Win32DiskImager which you can get at a lot of sites, but I got it from the official site. Plug the micro SD card into the laptop somehow, it will show up as a Windows disk, and use Win32DiskImager to write it to the SD card.

In 2025, we bought another 4x2 board and it came with an SD card, but instead of using it, we downloaded the image from the web site, but we kept getting USB errors after bootup. After lots of exchanges with the kind people at RealDigital, we found out that there had been a slight change to the USB3 chip on the new versions of the 4x2, and that this change necessitated a new version of v3.0.1. Then I found that they had actually shipped a micro SD card that had the latest version of v3.0.1 with the USB3 fix! But they also sent me a link to that version, which is here. I'm not exactly sure whether v3.0.1 on the PYNQ site has the old or new version of v3.0.1.

Now, there's a new version on that site, v3.1.1. This version is codenamed "Carlisle", and differs from v3.0.1 in that v3.1.1 goes with all of the project overlays that were built with Vivado 2024.1, so you get the advantage of 2 years of AMD toolchain advances baked into the bitstreams and kernel. V3.1.1 also fixes a bug with the transmitter gain, although AMD didn't really document exactly what the bug was but we did find a problem with setting the gain in software, so probably that is what has been fixed. Also, v3.1.1 introduces a beta release of PYNQ that allows for remote access workflows, and a new C++ integration path but I haven't looked much into these. Accessing this new version is the same as v3.0.1 described above: download and flash onto a SD card using Win32DiskImager.

If all goes well, after loading the card, you can then put the SD card into the board SD slot and plug in the USB3 connector (middle right side of board) and plug the USB-A side into your computer. Plug in the power cord (upper right side of board) and boot it up the board by toggling the power switch.

When the board boots, wait around 30 seconds, then you should see on the LCD display the following:

RFSoC-PYNQ
Version 3.0.1 or 3.1.1

IP Addr(usb0):
192.168.3.1

192.168.3.1/lab

You can also ssh into the RFSoC and have the full Linux kernel capabilities. Probably best to just use the terminal window on a MacOS machine and ssh in, or from Windows use PowerShell.

Back to top

Increasing contiguous memory on the A53 processor

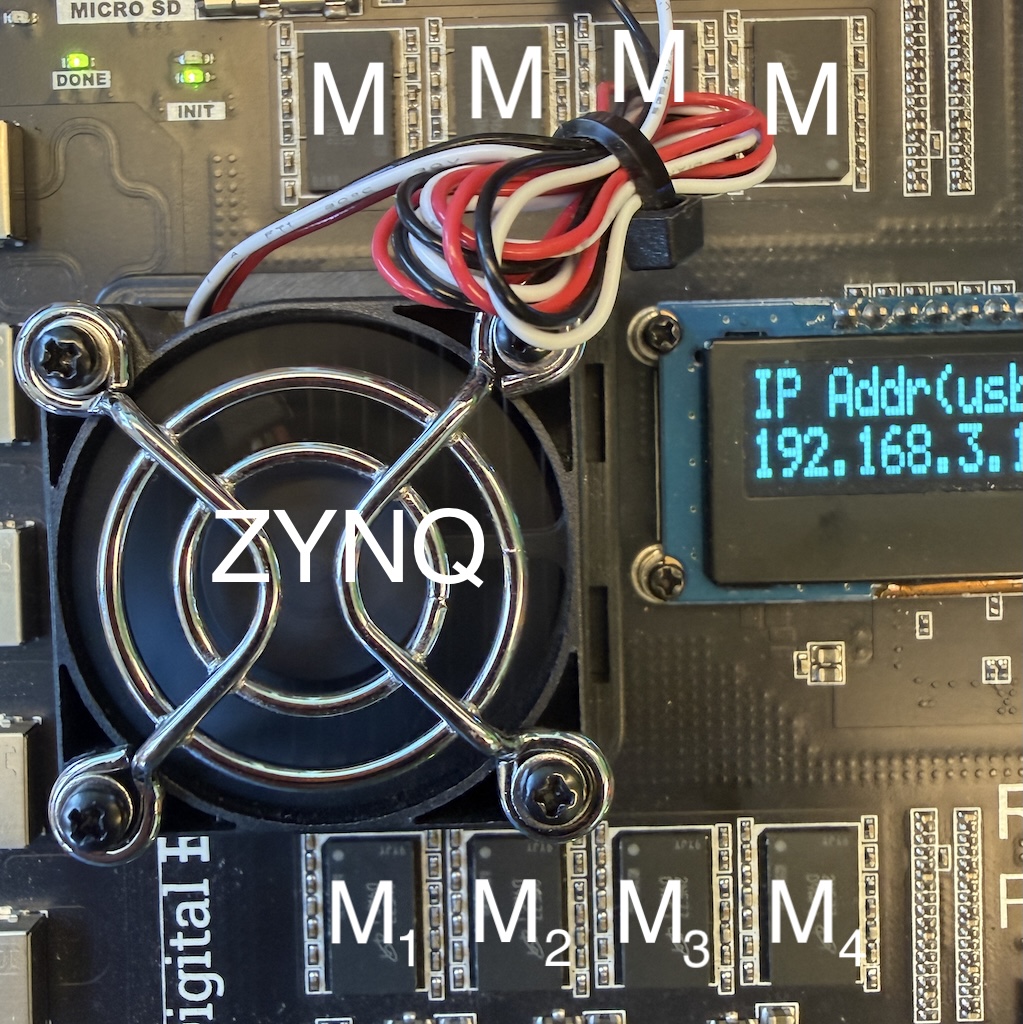

As you can see in the photo above, the Zynq chip that contains the PS and PL is under the fan, and there are 2 rows of 4 chips above and below, marked by a white "M". Each of the 8 chips contains 1GB of 2.4GHz DDR4. The row above the ZYNQ chip is used by the FPGA (the PL) and the row below is used by the A53 ARM chip (the PS).

Each chip memory is 16-bits wide, so the number of 16-bit words is 512M per chip. The way these chips are wired in is that all 4 chips share the same clock and command signals, and operate in lockstep, so every memory access involves 64 bits. But there's even more parallelism: DDR4 always works in bursts of 8 (burst length = 8, or BL8 in the jargon). So one DDR4 read produces 8 consecutive 64 bit transfers on the data bus, so each transfer is 64 bits, or 8 bytes, and there are 8 transfers in a burst so each BL8 produces 64B of data. And this matches the CPU cache in the A53 processor.

We are often using the DDR4 as 32-bit memory buffers (as in some of the tutorials here, see below). What happens when you allocate such buffers is that when you read or write, you are always reading or writing 64 bits at a time. So for instance, say you allocate a large 32-bit buffer and store some data in it (for example, you store a sequential number starting at 0). Let's name the chips left to right M₁, M₂, M₃, M₄. Then the first memory location in your buffer will have a 1, the 2nd a 2, etc. When you do a memory read, the computer will read 64 bits at a time, so it reads 2 buffer locations, buffer[0] and buffer[1]. The software (and the hardware) will take care of figuring out that the lower 16 bits of buffer[0] is the first 16 bits of M₁ and the upper 16 bits of buffer[0] is the first 16 bits of M₂. Then the lower 16 bits of buffer[1] is the first 16 bits of M₃ and the upper 16 bits of buffer[1] is the first 16 bits of M₄. Reading again, it uses the 2nd 16 bits of M₁ and the 2nd 16 bits of M₂ to form buffer[2], and etc. This means that each DDR4 read, which delivers 64B in a BL8 burst, will actually read 16 32-bit words at a time. And as you can imagine, since you are often accessing data to and from the PS, you get enormous bandwidth from the parallel nature of the DDR through the system cache. However, for DMA, the system bypasses the PS cache and goes directly from the DDR memory controller to the AXI interconnect. The system is super fast!

The latest versions of the Ubuntu that runs on the A53 ARM chip (the 64 bit chip) boots up with a default of 128MB of contiguous memory, all in the DDR. 128MB spread over 4 chips is 32MB per chip, and each chip contains 1G (1024MB actually) of memory. So a contiguous buffer of 128MB is only utilizing 32M/1024M = 3.1&percent; of the capacity of each DDR chip. The rest can be used for general-purpose Linux memory like paging, processes, kernel structures, etc. If we were to increase the contiguous memory allocation to 1GB, a factor of 8, then we would be reserving roughly 25&percent; of the memory for a contiguous buffer, and if each buffer was created with 32 bits, we could have up to 512M of contiguous memory for that buffer.

To confirm how much contiguous memory has been allocated, boot up the RFSoC, and at the Linux prompt, type

cat /proc/meminfo | grep -i cma

It will return something like this:

CmaTotal: 131072 kB
CmaFree:  120680 kB

The "CmaTotal" of 131072 can be converted from kB to MB by dividing by 1024 to get 128 MB. The Linux version of PynqLinux here is based on Ubuntu 22.04 Jammy, and it boots up via a U-boot script (there are alternatives, but this is what PynqLinux uses). You can know this by looking at the directory /boot/ via

ls -la /boot/
drwxr-xr-x  3 root root    16384 Jan  1  1970 .
drwxr-xr-x 19 root root     4096 Nov 21 17:57 ../
-rwxr-xr-x  1 root root  1683736 Oct 23  2022 BOOT.BIN*
-rwxr-xr-x  1 root root     1726 Oct 23  2022 boot.py*
-rwxr-xr-x  1 root root     2779 Oct 23  2022 boot.scr*
-rwxr-xr-x  1 root root 23123516 May 25  2024 image.ub*
-rwxr-xr-x  1 root root       89 Oct 23  2022 REVISION*
drwxr-xr-x  2 root root     4096 May 26  2024 "System Volume Information"

That you see BOOT.BIN and boot.scr is telling you that the system uses the U-Boot facility.

All you need to do to increase contiguous memory is to create a file in /boot that gets read at boot time, and put the modifications there. So it's quite easy:

cd /boot
sudo nano uEnv.txt

and add this line (one line, be careful!)

bootargs=root=/dev/mmcblk0p2 rw earlyprintk rootfstype=ext4 rootwait devtmpfs.mount=1 uio_pdrv_genirq.of_id="generic-uio" clk_ignore_unused cma=512M

Then save and exit (control x) and reboot. This increases the contiguous memory to 512M, but you can go higher (e.g. change "512M" to "2G"). When I did that on the 4x2 board, I now see the following:

CmaTotal: 524288 kB
CmaFree:  518000 kB

And 524288 divided by 1024 is 512, which is what I set it to.

Getting STDOUT Linux bootup output

• On a PC:
  • Open up the "Device Manager" and click "Ports (COM & LPT)". You should see what COM ports are active.
  • Plug a micro-USB cable into the "PROG UART" connector (top right) of the 4x2, and then plug into the PC. You should see an additional COM port added to the Device Manager. It will be something like this: "USB Serial Port (COM6)". The "COM6" (or whatever it reports) is what you want you want to note.
  • Download a serial program like PuTTy (see https://www.putty.org) and run it. In the "PuTTY Configuration" window select "serial" for "Connection type:", set the "Serial Line" to COM6 or whatever was reported by the Device Manager, and set the "Speed" to 115200. Then click open. This should pop up a window.
  • Power up the board. You should see all of the usual linux stdout output streaming by. When you shutdown the board, take a look at this output to be sure that it's really shut down before powering off.
• On a MAC:
  • Open up a terminal window on the MAC and type "ls -la /dev/*usbserial*". That will show what serial devices exist.
  • Plug a micro-USB cable into the "PROG UART" connector (top right) of the 4x2, and then plug into the MAC.
  • Then open up a terminal window type "ls -la /dev/*usbserial*". You should see something like the following:

    /dev/cu.usbserial-8873392300A50
    /dev/cu.usbserial-8873392300A51
    /dev/tty.usbserial-8873392300A50
    /dev/tty.usbserial-8873392300A51


    The difference between tty and cu is that tty listens without responding but cu will respond, so we want tty. Note the 2 tty numbers. I don't know how to tell which one is the right one, but the numbers will differ by 1 usually. You will need these numbers below (they won't be the same as above).
  • Open up a 2nd terminal, so now you have 2 terminal windows open. In one of them type "screen /dev/tty.usbserial-8873392300A50 115200" (the 1st tty.usbserial* from above) and in the other, "screen /dev/tty.usbserial-8873392300A51 115200" (the 2nd tty.usberial* from above). One of them will work. (Note: "screen" is a MacOS command that launches a GNU Screen terminal emulator, the "115200" is the baud rate to match the 4x2 output baud.)
  • Power up the board. One of the the 2 screens will show you the boot output messages.

Back to top

RF Converter

The RealDigital 4x2 board has a ZYNQ Ultrascale+ RFSoC ZU48DR chip made by AMD/Xilinx, and that chip has electronics for 8 DACs and 8 ADCs. However, the RealDigital RFSoC board only allows the use of 2 DACs and 4 ADCs. Each of the 2 DACS on that board can be run with sampling times of up to 9.85 GSps, and 4 ADCs with sampling times of 5 GSps.

Having ADCs that can digitize so fast allows radio processing to all be done in software. The incoming signal, consisting of a carrier frequency in the GHz range with lower frequency modulation, can be digitized directly, and Fourier analyzed to extract the modulation, with no need for the usual heterodyne or superheterodyne downmixing.

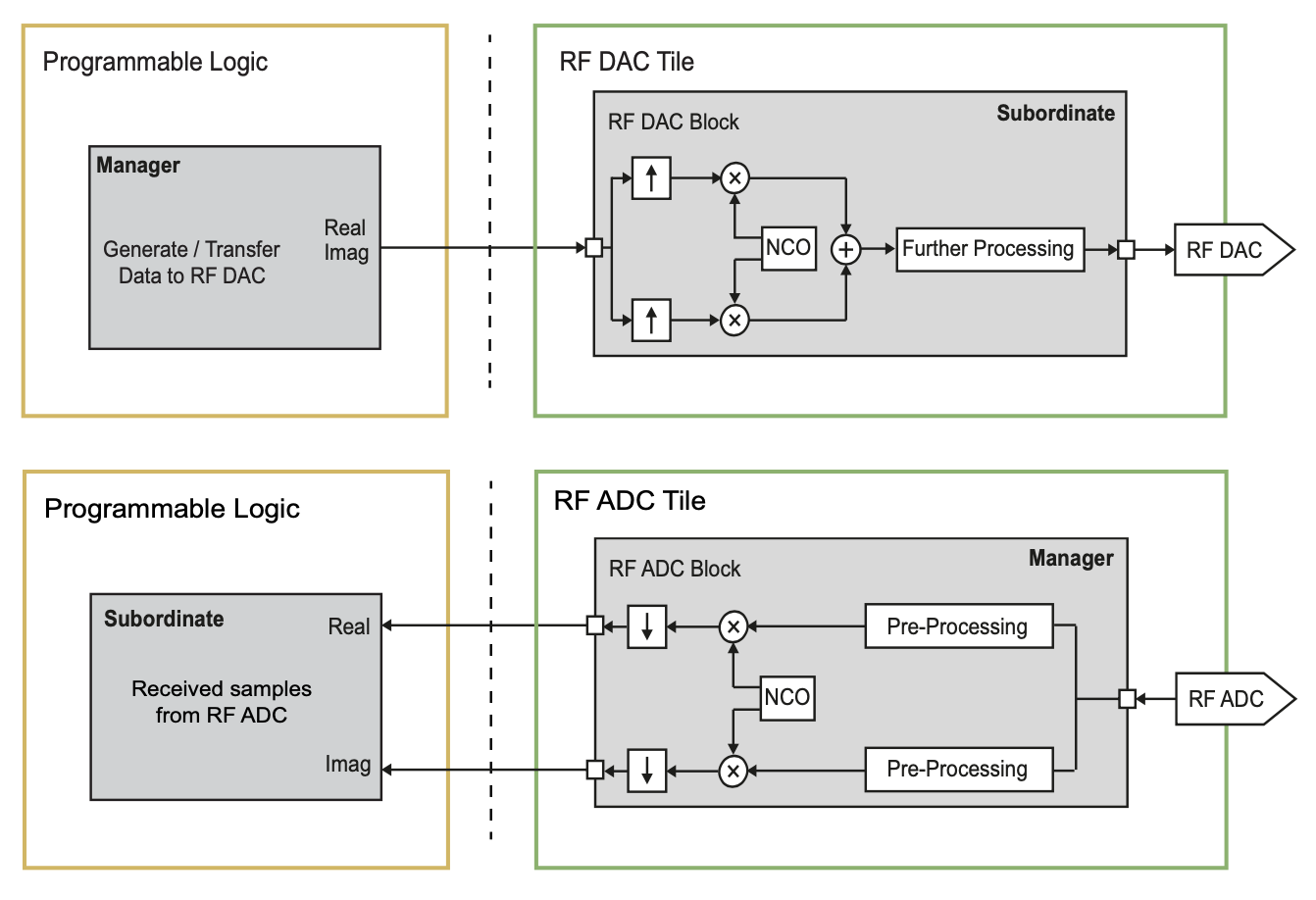

The RF Converters on the ZYNQ chip are fully integrated into the FPGA as described in the following figure:

NCO stands for numerically controlled oscillator, which means the carrier wave, and the converter will generate both the in-phase (I, a cosine) with the quadrature (Q, sine) carrier wave. For the DAC, you input a waveform, with separate I and Q parts, and the converter will multiply the carrier I with the waveform I, same with Q, and mix the two together. For the ADC, it will mix the carrier (from the NCO) I and Q with the incoming waveform to recover the modulation I and Q parts.

The NCO is worth understanding: how does it produce a sine and cosine with arbitrary frequencies without tuning an analog oscillator? The way it works is complicated, but you can get a good idea from the following: imagine a lookup table (LUT) that has $2^{40}$ addresses, and at each address is a value such that if you plot that value for all $2^{40}$ addresses, you'd see one period of a pretty high resolution cosine wave. Then you have a 40-bit register (called a "phase accumulator") that points to one of the values in the table. The value that the phase accumulator points to is the value that goes to the DAC for output conversion. If you had a clock that would run at 9.85 GHz, and every tick of that clock you increment the phase accumulator by 1/2 * $2^{40}-1$, then the analog output from the DAC would change at 9.85 GHz, from $+$ to $-$ and generate a wave at 1/2*9.85 GHz = 4.925 GHz. If on the other hand you increment the phase accumulator by 1, then it would take $2^{40}$ ticks to go through an entire cycle, which gives you an output frequency of $9.85 GHz/2^{40} = 8.96 mHz$ (milliHerz), and that would look pretty continuous since the phase would only be changing by 1 part in $2^{40}$ on each clock cycle.

Now let's say that you wanted the output of the DAC to change slower such that the outgoing analog carrier wave was at, for example, 100MHz. You can do this easily by changing the value you increment the phase accumulator. So to get a 100MHz tone, you increment the phase accumulator by a value of $(100\times 10^6)/(9.85 \times 10^9) \times 2^{40}$ which comes to $1.116\times 10^{10}$, which in hex is 0x$2995710E5$. Voila, you can generate any frequency you want to within 8.96 mHz resolution.

This is basically how it works, except that in actuality it employs a great deal of tricks. For instance, the cosine wave is very symmetric over the 4 quarters of a cycle, and there are ways to reduce the number of values in the LUT by a great deal (imagine the graduate students with theses that worked on this problem!).

Back to top

Driving PMOD output ports

On the board there is a 30pin 2-row connector at the bottom right with the labels "PMODB" on the left and "PMODA" on the right.

The following table gives the mapping for what pins on the connector are connected to what FPGA IO pin number:

TOP

3.3V

GND

AV13

AU13

AR13

AW13

AW14

AW15

AW16

3.3V

GND

AK17

AJ16

AG17

AF16

BOT

3.3V

GND

AU14

AT15

AP14

AU15

AT16

AV16

AR16

3.3V

GND

AK16

AH17

AF17

AF15

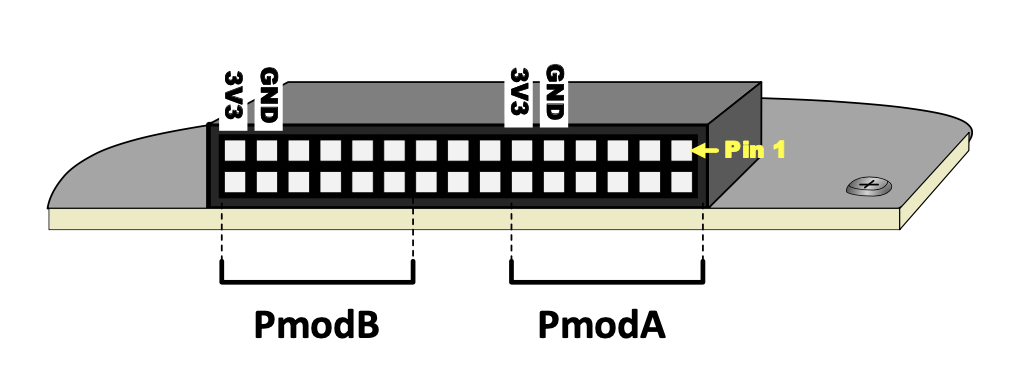

The 30-pin connector is constructed so that it looks like 2 "standard" 12-pin PMOD connectors (that's what PmodA and PmodB label) separated by 2 rows of 3 pins in between. That standard, which is probably not universal but seems to be generally accepted, has 2 rows of signals, with 4 signals in the first right-most pin followed by ground and power (usually 3.3V). The pins are usually labeled with the top right ("Pin 1") as pin 1, followed by 2, 3, 4, followed by ground on pin 5, and power on pin 6. The bottom row starts with pin 7, with pin 11 as ground and 12 as power.

Using the 30-pin connector

It's probably not so important to make this 30-pin connector look like 2 PMOD connectors with 6 extra signals, since what we will probably be using this connector for is to bring out signals for debugging. So let's make a labeling scheme that matches a 22-bit vector (call it PMOD[21:0]) that gets translated onto this connector such that PMOD[0] is the upper right, and PMOD[11] is the lower right, with numbers increasing to the left and skipping the 4 grounds and 4 power pins. So the connector looks like this:

TOP

3.3V

GND

10=AV13

9=AU13

8=AR13

7=AW13

6=AW14

5=AW15

4=AW16

3.3V

GND

3=AK17

2=AJ16

1=AG17

0=AF16

BOT

3.3V

GND

21=AU14

20=AT15

19=AP14

18=AU15

17=AT16

16=AV16

15=AR16

3.3V

GND

14=AK16

13=AH17

12=AF17

11=AF15

Then we can define a 22-bit vector and map the FPGA IO pins to that vector in the constraints file. The constraints file that you will have to edit should have the following (the last 2 or 3 constraints are just generally good things to enable). Note that the IOSTANDARD property sets the logic levels, which here are 1.8V separating 0 and 1, although the connector can supply 3.3V logic.

set_property PACKAGE_PIN AF16 [ get_ports "PMOD[0]" ]
set_property PACKAGE_PIN AG17 [ get_ports "PMOD[1]" ]
set_property PACKAGE_PIN AJ16 [ get_ports "PMOD[2]" ]
set_property PACKAGE_PIN AK17 [ get_ports "PMOD[3]" ]
set_property PACKAGE_PIN AW16 [ get_ports "PMOD[4]" ]
set_property PACKAGE_PIN AW15 [ get_ports "PMOD[5]" ]
set_property PACKAGE_PIN AW14 [ get_ports "PMOD[6]" ]
set_property PACKAGE_PIN AW13 [ get_ports "PMOD[7]" ]
set_property PACKAGE_PIN AR13 [ get_ports "PMOD[8]" ]
set_property PACKAGE_PIN AU13 [ get_ports "PMOD[9]" ]
set_property PACKAGE_PIN AV13 [ get_ports "PMOD[10]" ]
set_property PACKAGE_PIN AF15 [ get_ports "PMOD[11]" ]
set_property PACKAGE_PIN AF17 [ get_ports "PMOD[12]" ]
set_property PACKAGE_PIN AH17 [ get_ports "PMOD[13]" ]
set_property PACKAGE_PIN AK16 [ get_ports "PMOD[14]" ]
set_property PACKAGE_PIN AR16 [ get_ports "PMOD[15]" ]
set_property PACKAGE_PIN AV16 [ get_ports "PMOD[16]" ]
set_property PACKAGE_PIN AT16 [ get_ports "PMOD[17]" ]
set_property PACKAGE_PIN AU15 [ get_ports "PMOD[18]" ]
set_property PACKAGE_PIN AP14 [ get_ports "PMOD[19]" ]
set_property PACKAGE_PIN AT15 [ get_ports "PMOD[20]" ]
set_property PACKAGE_PIN AU14 [ get_ports "PMOD[21]" ]
set_property IOSTANDARD LVCMOS18 [ get_ports "PMOD[*]" ]

# configure unused IO pins to have internal pull-up resistors
set_property BITSTREAM.CONFIG.UNUSEDPIN PULLUP [current_design]
# enable the over-temperature shutdown features
set_property BITSTREAM.CONFIG.OVERTEMPSHUTDOWN ENABLE [current_design]
# compress the bitstream to make it smaller
set_property BITSTREAM.GENERAL.COMPRESS TRUE [current_design]

The pins are organized so that you can put a standard 12-pin PMOD connector into the right-most pins (PmodA, 1st 6 pairs of top/bottom pins) and the left-most pins (PmodB, last 6 pairs of top/bottom pins). That leaves 3 pairs of top/bottom pins in the middle. Each of these pins are routed to an IO pin on the FPGA, specified on page 16 of the

Each of these data pins are connected in a pretty funky labeling on the schematic, because they want to be able to accommodate 2 12-pin PMOD connectors, and in such connectors, the pin assignments run 1-6 on the top, right to left, then 7-12 on the bottom, left to right. But let's make it simpler and remap them by defining the PMOD 30-pin connector that has pin 1 in the upper right, with odd number pins on the top and even numbers on the bottom. That would give us grounds on pins 9 and 10 on the right and 27, 28 on the left, and 3.3V on pins 11 and 12 on the right and 29 and 30 on the left.

To send a signal to one of the data pins, you first have to create the output port on the project diagram. First, right click somewhere on the diagram, and select "Create Port". In the window that pops up, give it a name, change the "Direction" to Output, and change the "Type" to Data or Clock, the 2 most common outputs. Then hit OK. That will instantiate an output port (this one is named "test") that will look like this:

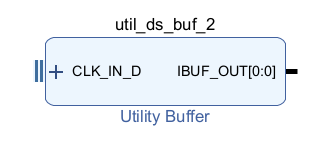

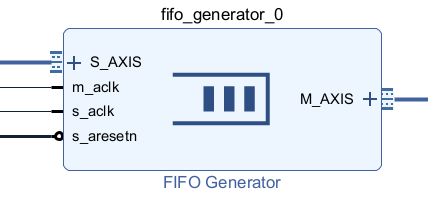

Next, we have to instantiate an output buffer, something that will take a signal from somewhere and drive the output. Right click on an empty part of the diagram, and select "Add IP" (or click the boldface $+$ sign on the menu bar under "Diagram") and search for "Utility Buffer", and double click. That will bring up a new circuit that will look like this:

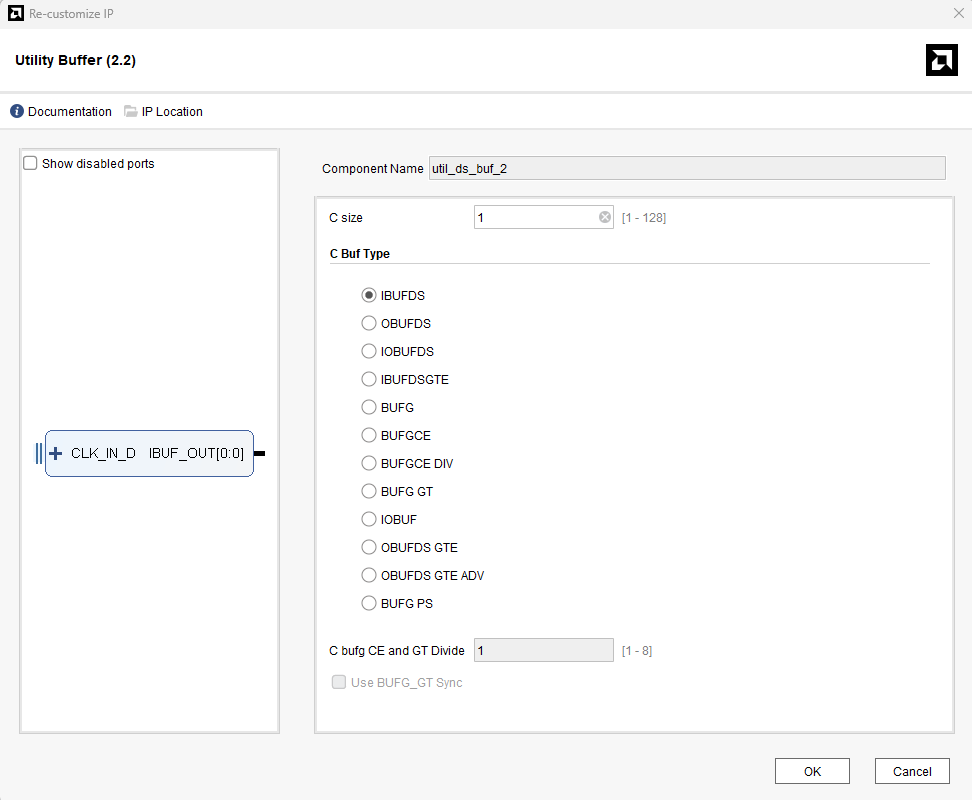

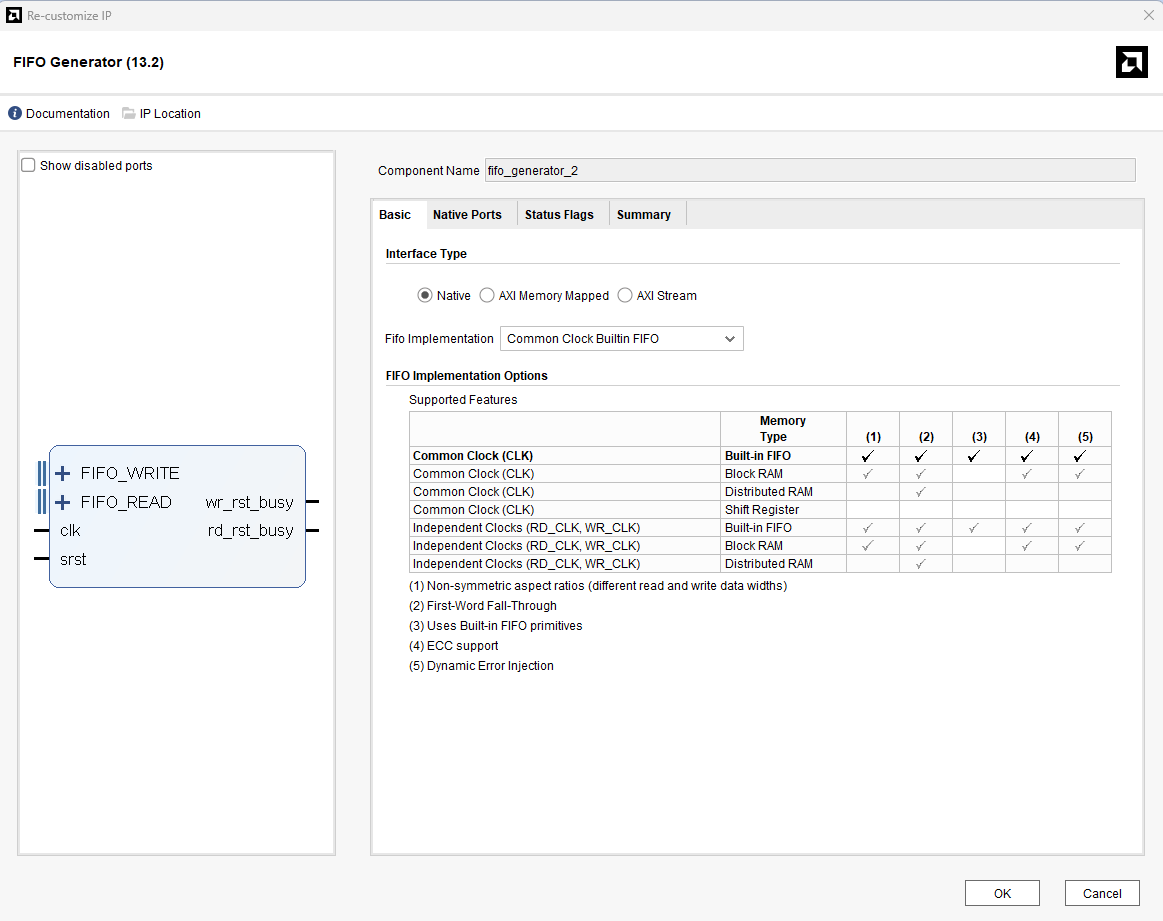

To configure the buffer, double click and you should see a configuration window that looks like this:

There are all kinds of buffers, and you can look them up but probably all you will need for simple outputs are either "BUFG". I've found this to be adequate for signals, even clocks as long as they aren't super fast (GHz).

The last thing you do on the diagram schematic entry is to use the mouse to click on the signal you want to output, and drag the connection to the buffer input, and likewise for the buffer output to your output port.

Back to top

Implementing Resets

Back to top

Importing 4x2 board parts into Vivado

1. First, download the Board Support Package (BSP) files from here
2. Unzip, which will make a directory called "RFSoC4x2-BSP-2020.2" somewhere that has the BSP files. Note the location of that directory, and run the following 2 commands in the Vivado Tcl console:

   set_param board.repoPaths RFSoC4x2-BSP-2020.2/board_files/rfsoc4x2/1.0/
   xhub::refresh_catalog [xhub::get_xstores xilinx_board_store]


Back to top

Saving the project

write_bd_tcl -make_local -no_ip_version name.tcl

So for example, say you build the project with Vivado 2024.2 and want to rebuild it using Vivado 2022.1 on the same computer. You make the name.tcl using 2024.2, then run 2022.1, hit "Create Project", set the project name and location in the "New Project" panel and hit Next. Skip the "Project Type" panel (just hit Next) and "Add Sources", and "Add Constraints (optional)" panels until you get to the "Default Part" panel. Here you click on "Boards", and search for 4x2 in the Search window (about halfway down). Click on "Zynq UltraScale+ RFSoC 4x2 Development Board" when that pops up (see 4x2parts if you don't see the 4x2). Note that clicking on that has the annoying habit of popping up a browser window, which you can ignore and go back to Vivado. Hit Next and that brings you into the Summary window. Hit Finish. That runs Vivado where you will see all the familiar panels. Click on "Tcl Console" towards the bottom, and that brings up the console and a text window. Type:

source ./name.tcl

(or change "./" to where you put name.tcl) and it will build the project for you. Voila. However, there is a caveat: any source file must be copied with the .tcl file and input by hand. That means any verilog or vhdl source, and any constraint file that sets ports etc (*.xdc files).

Back to top

Powering off the 4x2 board

shutdown now

Back to top

Tutorials

• pynq.io is the PYNQ portal, with lots of information including source codes, boards, tutorials, etc.
• Here's a tutorial I wrote on how to use the GPIO on the 4x2 board (switches, push buttons, leds): https://www.physics.umd.edu/hep/drew/rfsoc/gpio.html. It's basically an update from Tutorial: Creating a hardware design for PYNQ which comes from the PYNQ.io portal, is for a different board and an older version of Vivado.
• Here's a tutorial on using DMA to transfer data between the ARM chip and the FPGA: https://www.physics.umd.edu/hep/drew/rfsoc/dma.html

Back to top
