Tracking round a circuit

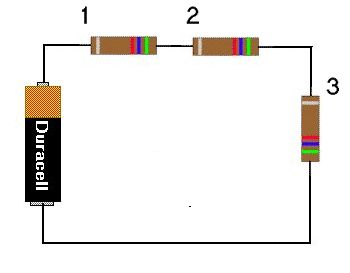

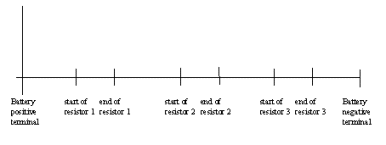

The circuit shown in the diagram at the right contains a battery and 3 resistors. The battery has an EMF of 5 V, R1 = 2 Ω, R2 = 3 Ω, and R3 = 5 Ω. Below are shown 3 graphs tracking some quantity around the circuit. On the first, plot the voltage a test charge would experience as it moved throughout the circuit. On the second, plot the electric field a test charge would experience as it moved through the circuit. On the third, plot the current one would measure crossing a plane perpendicular to the wire of the circuit as one goes through the circuit.
