Floating blocks*

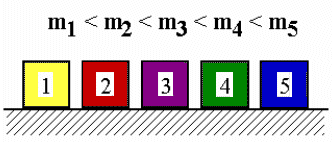

In the picture shown below are 5 blocks. The blocks have equal volumes but different masses. The blocks are placed in an aquarium tank filled with water and blocks 2 and 5 come to rest as shown in the lower figure. Sketch on the figure where you would expect the blocks 1, 3, and 4 to come to rest. (The differences in mass between successive blocks is significant — not just a tiny amount.)



* From M. E. Loverude, "Investigation of student understanding of hydrostatics and thermal physics and the underlying concepts from mechanics," Ph.D. Thesis, University of Washington, 1999.
