Forces on charges

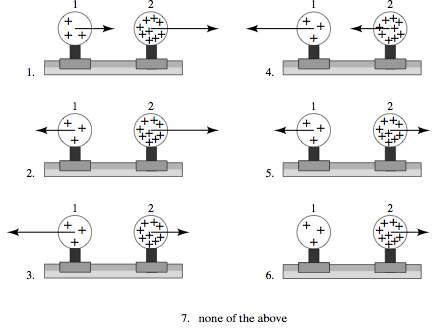

Two uniformly charged spheres are firmly fastened to and electrically insulated from frictionless pucks on an air table.The charge on sphere 2 is three times the charge on sphere 1. Which force diagram correctly shows the magnitude and direction of the electrostatic forces? Explain your reasoning.


* From E. Mazur, Peer Instruction (Prentice Hall)
