Carts and graphs

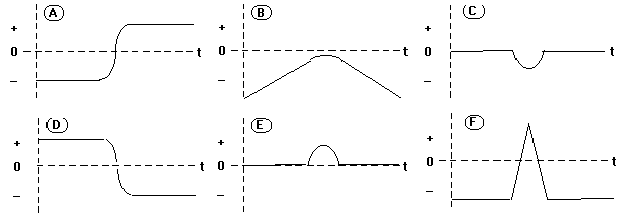

Two carts on an air track are pushed towards each other. Initially, cart 1 moves in the positive x direction and cart 2 moves in the negative x direction. They bounce off each other elastically. The graphs at the right describe some of the variables associated with the motion as a function of time. For the experiment described and for each item in the list below, identify which graph is a possible display of that variable as a function of time. If none apply, write N (for none).

  1. the momentum of cart 1
  2. the force on cart 2
  3. the force on cart 1
  4. the position of cart 1.
  5. the position of cart 2
