Problems for
Intermediate Methods in Theoretical Physics

Edward F. Redish

Line Integral for a Non-Conservative Loop

In a plasma, for a short time, the electric field is well described by the function

where C is a constant.   This field arises from both charges and from changing magnetic fields, so we cannot assume that there is a well-defined potential function for E .

(a) Evaluate

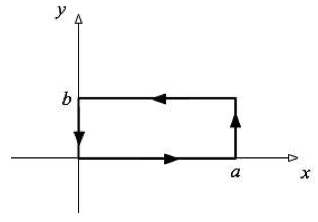

around the loop shown at the right for the given electric field by doing the line integrals explicitly.

(b) If we were to carry a charge, q , around the loop shown in the direction shown, what would be the work done by the electric field on the charge?
